Portable Wash Bays
Portable wash bay systems
Custom, self-contained portable wash bays available in three standard sizes or custom built to your exact specifications. Manufactured from either HD PVC or standard PVC depending on your requirements.
Professional
| Dimensions | 4M x 6M |
| Material | PVC |
| Pump | 12V |
| Ramps | 2 |
| Spray Curtains | 2 |
Advanced
| Dimensions | 4M x 6M |
| Material | PVC |
| Pump | 12V |
| Ramps | 2 |
| Spray Curtains | 2 |
| Oil Water Separator | 1 |
Need a custom solution?
Trade wash can design and manufacture custom built portable wash bays at almost any size requirement.
Prices are super competitive and we can arrange delivery fast.
Speak to us today for all your wash bay requirements, large or small.
What is a portable wash bay?
Portable Wash bays are relocatable self-contained wash-down stations used for wash down activity involving vehicles and machinery with the primary objective of retaining wastewater before it enters the sewar network. They are also commonly referred to as car wash containers, heavy duty wash bays, wash mats, and portable wash bay systems.

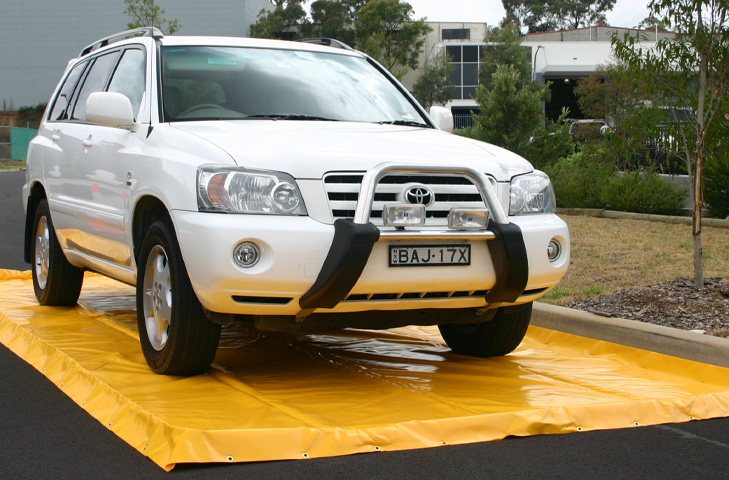

An entry-level portable wash bay system typically consists of a vehicle wash mat constructed from either standard PVC or HD PVC (heavy duty), a bunded perimeter wall allowing for vehicle access while retaining all wastewater within and a pump for transporting wastewater for treatment, recycling or to a holding tank depending on your requirements.
Portable wash bay accessories
Tradewash can also provide vehicle ramps providing for easy access for heavy machinery such as forklifts, standard or heavy duty side screens, filter bags and a range of oil water separators for a complete trade wash solution.
Our range
TWB001 portable wash bay
Our process
- Wash down the vehicle or machinery on the wash mat.
- As water collects on the wash mat the automatic wash bay pump will pump water off the mat to a holding tank.
- When the tank is close to full call in a pump truck and have the contents of the tank taken off-site.
Specifications
| Dimensions | 4M x 6M (Standard size vehicle) |
| Material | PVC or HD PVC |
| Bunded perimeter | Premium quality foam edge profile encased in PVC of your choice |
Pump specifications
| Power | 12V |
| Base plate | Stainless steel |
| Automation | Automatic float switch |
| Cable length | 3M |
TWP001 portable wash bay
Our process
- Wash down the vehicle or machinery on the wash mat.
- As water collects on the wash mat the automatic wash bay pump will pump water off the mat to a holding tank.
- When the tank is close to full call in a pump truck and have the contents of the tank taken off-site.
Specifications
| Dimensions | 4M x 6M (Standard size vehicle) |
| Material | PVC or HD PVC |
| Bunded perimeter | Premium quality foam edge profile encased in PVC of your choice |
| Spray curtains | x2 |
| Fabricated ramps | x2 |
Pump specifications
| Power | 12V |
| Base plate | Stainless steel |
| Automation | Automatic float switch |
| Cable length | 3M |
TWA001 portable wash bay
Our process
- Wash down a vehicle on the wash mat.
- As water collects on the wash mat the automatic wash bay pump will pump water off the mat to a holding tank.
- As the level in the tank rises it activates the float switch which activates the pump feed to the separator which gravity feeds to the sewer.
- The separator pump controller has 2 x floats, 1 for activating the pump and the other acts as a high level alarm indicating a flashing strobe to signal the level in the tank reaching a high level and to investigate.
Specifications
| Dimensions | 4M x 6M (Standard size vehicle) |
| Material | PVC or HD PVC |
| Bunded perimeter | Premium quality foam edge profile encased in PVC of your choice |
| Spray curtains | x2 |
| Fabricated ramps | x2 |
| Oil water separator | TW1000 Oil water separator |
Pump specifications
| Power | 12V |
| Base plate | Stainless steel |
| Automation | Automatic float switch |
| Cable length | 3M |
Wastewater removal
All Trade Wash washbays come with a minimum 12V pump and 3M power cable for pumping washdown wastewater either for treatment, recycling or to a holding tank. Our 12v Pump features a stainless steel screened basket, Automatic float switch with a 3m water proof /fused cable
Does your business require a wash bay?
A wash bay is required for environmental compliance by businesses who have wash down activity occurring in their place of business. Regardless of the size of your operation, essentially if you are washing vehicles or machinery in any capacity on your business premises you require a wash bay.
Wash bays protect the environment by preventing untreated wash down wastewater from entering the sewer network untreated. Wastewater from wash down activity can either be treated, recycled or held in a holding tank to be taken off site at your convenience.
What is the advantage of a portable wash bay?
A portable wash bay offers several advantages to a permanent wash bay including the following:
- Less expensive setup costs compared to a permanent wash bay
- Can be installed much faster than standard wash bays
- Can be custom made to suit your exact requirements
- They can be stored when not in use or used in different locations
- Provides 100% spill containment or as a complete trade waste system including pumps and oil water separator
- Can be used for liquid storage requirements
- Specially designed edge profile, allowing for efficient vehicle entry while containing wastewater
A portable wash bay is an ideal solution for smaller operations who simply require a way of retaining wastewater to be environmentally compliant. They are also ideal for non-permanent work sites e.g. commercial developments.
A cost efficient solution
Our portable wash bay systems have the capacity to save you thousands of dollars when compared to a more permanent wash down solution.
We can custom build specifically for your requirements or space constraints and can also advise on how smaller operators can provide a compliant solution without the need for additional wastewater reclamation equipment or dealing with local water authorities. No tricks, just common sense solutions that minimise your paperwork.
