COMPONENT RANGE
Portable wash bay components and accessories
Access, protection, containment and overspray-control components are selected around the wash bay dimensions, vehicle loads, wheel path and operating frequency. The transfer pump is supplied with a new portable wash bay and is not treated as an optional accessory here.
LIGHT-VEHICLE ACCESS

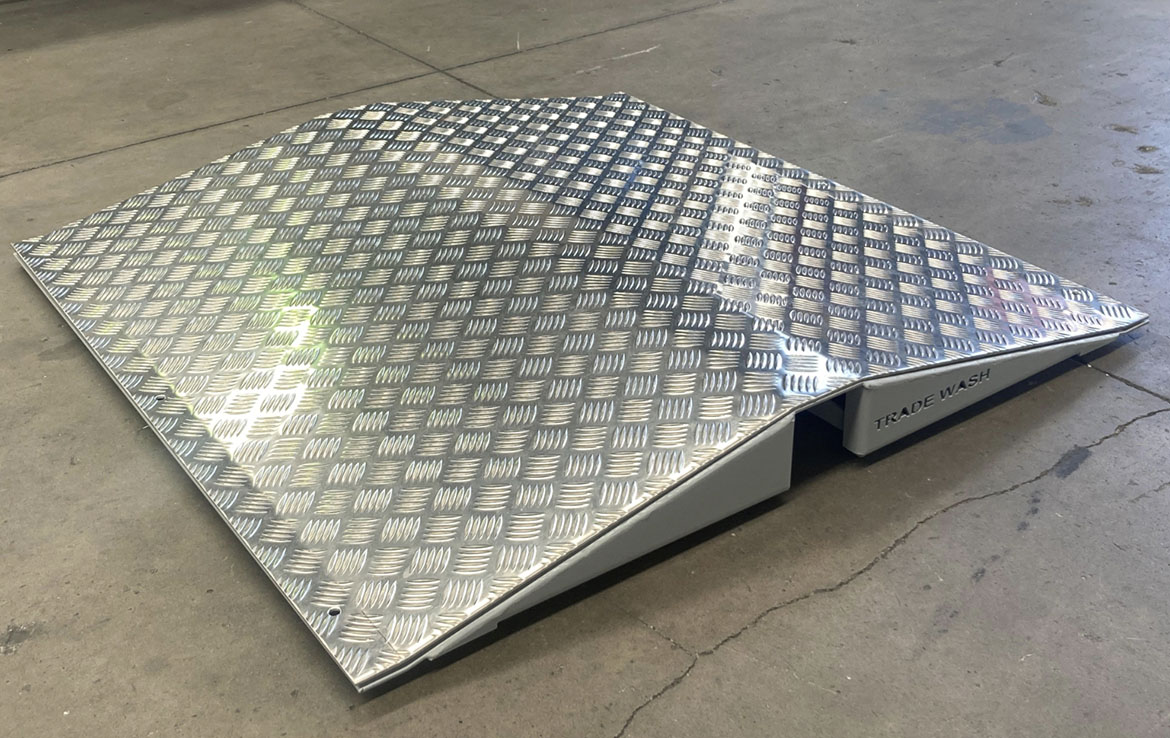

Light-duty wash bay ramps
Heavy-duty aluminium entry and exit ramps designed to provide vehicle access across the 100mm wash-mat edge. Suitability must be confirmed against vehicle, wheel or axle loads and crossing frequency.
- Supply: Two ramps per set
- Best for: Cars and light vehicles
HEAVY-VEHICLE ACCESS
Heavy-duty wash bay ramps
100mm-high aluminium access ramps with internal gussets for strength, suited to cars and appropriate light vehicles.
- Size: 1200 × 1200 × 100mm
- Supply: Two ramps per set
WASH MAT PROTECTION

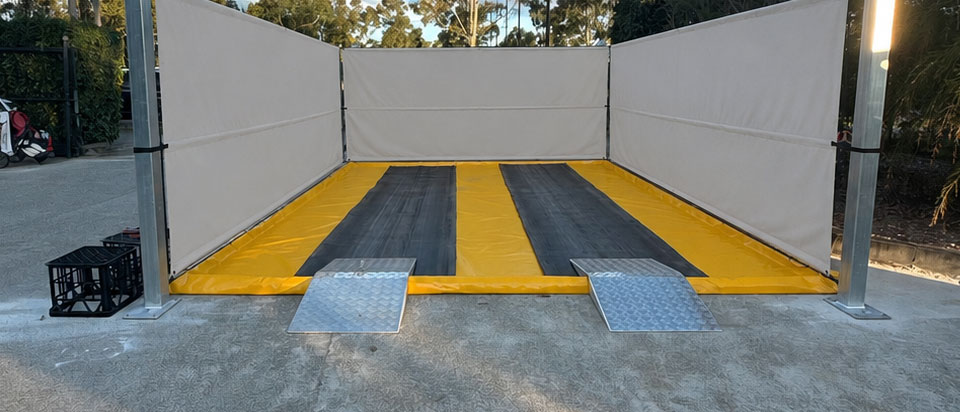

Heavy-duty wheel tracks
Drive-over tracks made from industrial conveyor-belt material to protect high-traffic wheel paths across the PVC wash mat.
- Construction: Nylon core
- Thickness: 8–10mm
OVERSPRAY CONTROL
Spray curtains and support posts
Reinforced spray curtains used with support posts to define the wash area and reduce side spray.
- Material: 680 GSM RPVC
- Eyelets: Reinforced at 1m spacing
PORTABLE CONTAINMENT

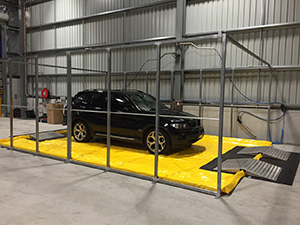

Replacement wash mats
Replacement and custom-sized containment mats for existing portable vehicle and machinery wash bay installations.
- Size: Standard or custom
- Material: PVC or heavy-duty PVC
Fixed containment
Rubber floor bunding
Drive-over floor bunding for permanent wash areas, workshops and containment perimeters where vehicles require regular access.
- Best for: Fixed wash areas
- Installation: Sealed to the floor
CHOOSING COMPONENTS
Match wash bay components to the vehicle and operating duty
Bay dimensions alone do not confirm the right component. Vehicle weight, wheel or axle loads, tyre position, approach conditions and repeated traffic must all be considered.
01
Identify the bay
Confirm the wash mat dimensions, bund height and the component being added or replaced.
02
Record the vehicle
Provide the heaviest vehicle, wheel or axle load, tyre width and wheel-track position.
03
Check the access
Allow for entry direction, available approach space, ramp angle and crossing frequency.
04
Configure the set
Match the ramps, wheel tracks, spray curtains and support posts to the bay layout and operating duty.
INFORMATION NEEDED
Component enquiry checklist
These details help us identify the appropriate component and resolve compatibility or sizing questions before confirming price and availability.
- Wash bay type, model and overall dimensions
- Component being added or replaced
- Heaviest vehicle and expected wheel or axle load
- Tyre width and wheel-track position
- Photos of the wash bay and vehicle access area
- Entry and departure direction
- Required curtain length, height and sides
- Delivery location and required timeframe
Compare access options
Light-duty and heavy-duty wash bay components are not interchangeable
Access and protection components must be matched to the actual vehicle duty. Wheel loads, tyre position, crossing frequency and approach conditions determine which ramps and wheel tracks are suitable.
| Component | Typical vehicle duty | Primary purpose | Selection check |
|---|---|---|---|
| Light-duty ramps | Cars and suitable light vehicles | Cross the wash-mat edge | Wheel load and approach |
| Heavy-duty ramps | Trucks, plant and heavy machinery | Higher-load entry and departure | Wheel or axle load and frequency |
| Heavy-duty wheel tracks | Plant, 4WDs and repeated traffic | Protect the main wheel path | Tyre width and track layout |
| Spray curtains and posts | Suitable light- and heavy-vehicle bays | Reduce overspray | Bay length, spray height and required sides |
Questions we are regularly asked
Before you request component pricing
The right component depends on the vehicles, loads, wash frequency and the existing wash-bay configuration.
Which access ramps do I need?
Ramp selection depends on the vehicles using the wash bay, the wheel or axle loads, crossing frequency and the wash-mat height. We confirm these details before recommending light-duty or heavy-duty access ramps.
When are wheel tracks recommended?
Wheel tracks provide a defined vehicle path and help protect the wash-bay mat from repeated traffic. Their suitability depends on vehicle size, wheel paths, loads and how often the wash bay will be used.
Can components be added to an existing wash bay?
Often they can, but compatibility must be confirmed. Photos, dimensions and details of the existing mat, platform, drainage and equipment help us identify suitable replacement or add-on components.
What information should I provide for pricing?
Please provide the vehicle type and size, expected loads, wash frequency, required component, site location and any available photos or dimensions. This helps us recommend the right configuration and prepare accurate pricing.
